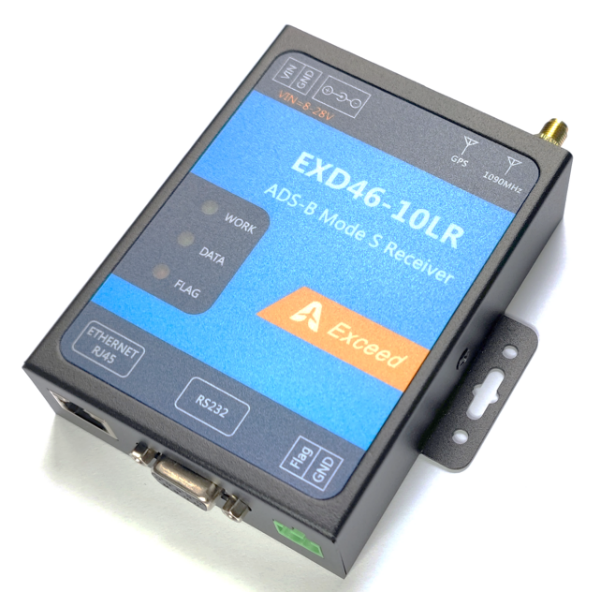

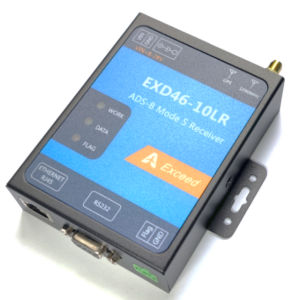

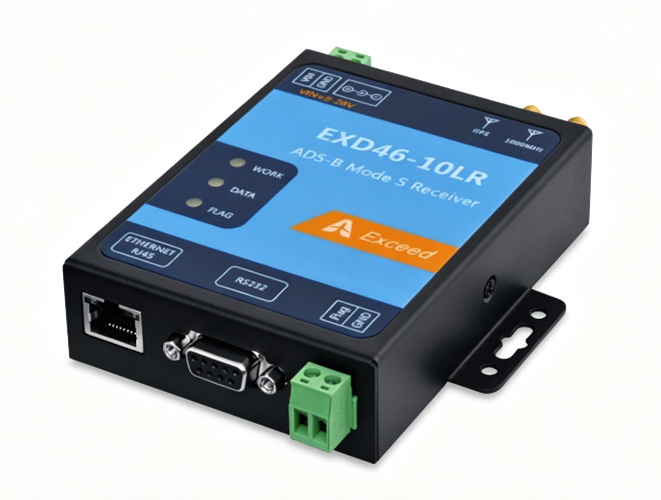

EXD46-10LR is a high performance ADS-B mode S receiver which adopting RS232 and Ethernet data interfaces, supporting TCP/UDP protocol, supports POE power or external DC power supply. The device is easy to expand, and  multiple devices can be  networked to form an ADS-B network so as to provide extensive large-area  low- altitude surveillance. The receiver integrates GPS+BD module, which can provide high-resolution timestamps for each received message, allowing using Time Difference of Arrival (TDOA) to calculate aircraft position, supporting Multilateration (MLAT).
The receiver adopts an optimized RF circuit, with a receiving sensitivity of up to -102dBm and a stable monitoring distance at 350km. The receiver integrates a high-performance DSP processor, supports simultaneous output of RS232 serial port and network port, and with self-developed ADS-B message decoding algorithm and collision detection algorithm, can simultaneously output MLAT messages with high-precision timestamps, Mode S messages, DF17/DF18 messages, JSON format messages, CAT021 format messages, or aircraft plaintext information (ICAO, flight number, latitude/longitude, altitude, speed, heading, ect.) through the serial port and network port. It is compatible with commonly used domestic ground station software and ATC automation systems.
Features
- Maximum receiving sensitivity -102dBm, monitoring distance>350km
- Can output ADS-B raw messages, CAT021 data, or aircraft plaintext data
- Integrated GNSS, supporting multi-point positioning system (MLAT)
- Metal shielding shell, high stability, wide power input
ApplicationÂ
- ADS-B signal receiver
- Airborne obstacle avoidance and UAV collision risk monitoring
- Airspace monitoring
- Ground equipment, virtual radar, multi-point positioning system (MLAT)
