Summary
EXD-SC1 is an ultra-small ADS-B receiver module that supports ADS-B plaintext, MavLink, DF raw message output, supports customization of private output ptotocols or special functional requirements. The module has a built-in two-stage SAW filter and a one-stage low-noise amplifier, which can effectively filter out most of the out-of-band noise in the spatial channel for a better signal-to-noise ratio, with a typical receive sensitivity of -90dBm. The module uses industrial-grade chips, crystal oscillators, passive components, and can work stably from -40 °C to +85 °C.
The module adopts SMD stamp-hole packaging and supports the reflow soldering process, which is convenient for integration or OEM use, providing surrounding airspace situational awareness surveillance. Compared with other ADS-B receiver modules, this module offers richer data output types and functional interfaces, supports secondary development, and provides technical support.
Features
- Receiving sensitivity -90dBm, surveillance range about 250km
- Ultra-small size, low power consumption
- Supports serial port firmware upgrade, convenient for adding new features
- USART TTL level data interface, baud rate between 9600-921600
- Aircraft plaintext, MavLink messages, or DF raw message output
- PIN-to-PIN compatibility with Aerobit TT-SC1
- Provides an adapter board with standard GH1.25-6P interface, can directly connect to flight controller
Application
- ADS-B signal receiver
- Aerial obstacle avoidance, UAV collision risk monitoring
- Airspace surveillance

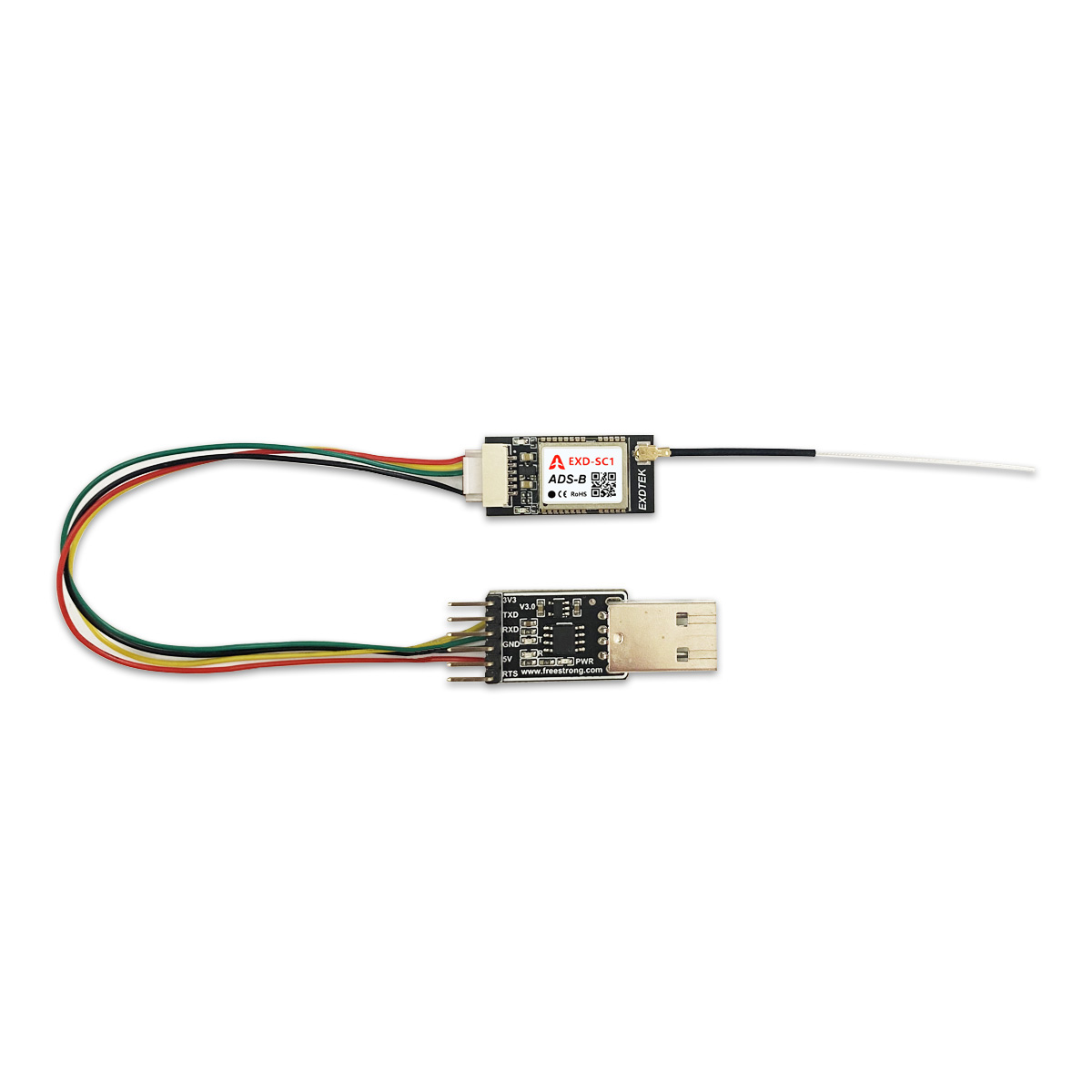

Evaluation board
Connection with PX4
Connection with USB-to-TTL board
Technical Parameters
Product includes
- EXD-SC1 Evaluation board
- USB-to-TTL board with GH1.25-6P conneector and cable
- 1dBi IPEX antenna
Datasheet
- EXD-SC1 ADS-B Receiver detasheet
