VS36-12D is a highly integrated, small-size and low-power Mode S signal ADS-B receiver module, and the typical operating current is only 60mA. At the signal input end of the receiver, two-stage narrowband filters and one-stage low-noise amplifier are used, effectively filtering out most of the out-of-band noise in the spatial channel to obtain a better signal-to-noise ratio. Internally, it integrates a high-dynamic signal processing circuit, allowing simultaneous reception of ADS-B broadcast information from short range to long.
The module features a dual-core processor with proprietary decoding and collision detection algorithms. It outputs raw ADS-B, MavLink2, or aircraft plaintext (ICAO, flight number, lat/lomg, altitude, speed, heading, etc.) via serial port. The Flag pin can be set high upon collision risk or ADS-B detection.
Features
- Maximum receiving sensitivity -90dBm
- Ultra small size 50 x 38 x 5mm
- Low power consumption<60mA (when input voltage is 5V)
- USART TTL level data interface with baud rates between 9600 and 921600
- Supports MavLink format output, can be directly connected to the flight controller, plug and play
- Antenna integrated lightning protection circuit
Application
- ADS-B signal receiver
- Â Ground equipment, virtual radar
- Airborne obstacle avoidance and UAV collision risk monitoring
- Airspace monitoring
Hardware Connection

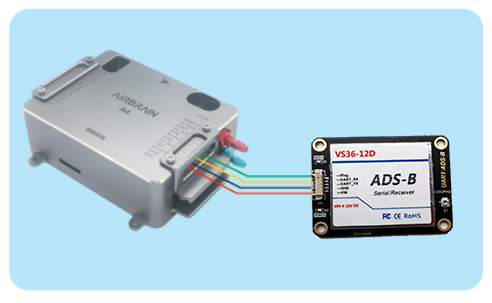

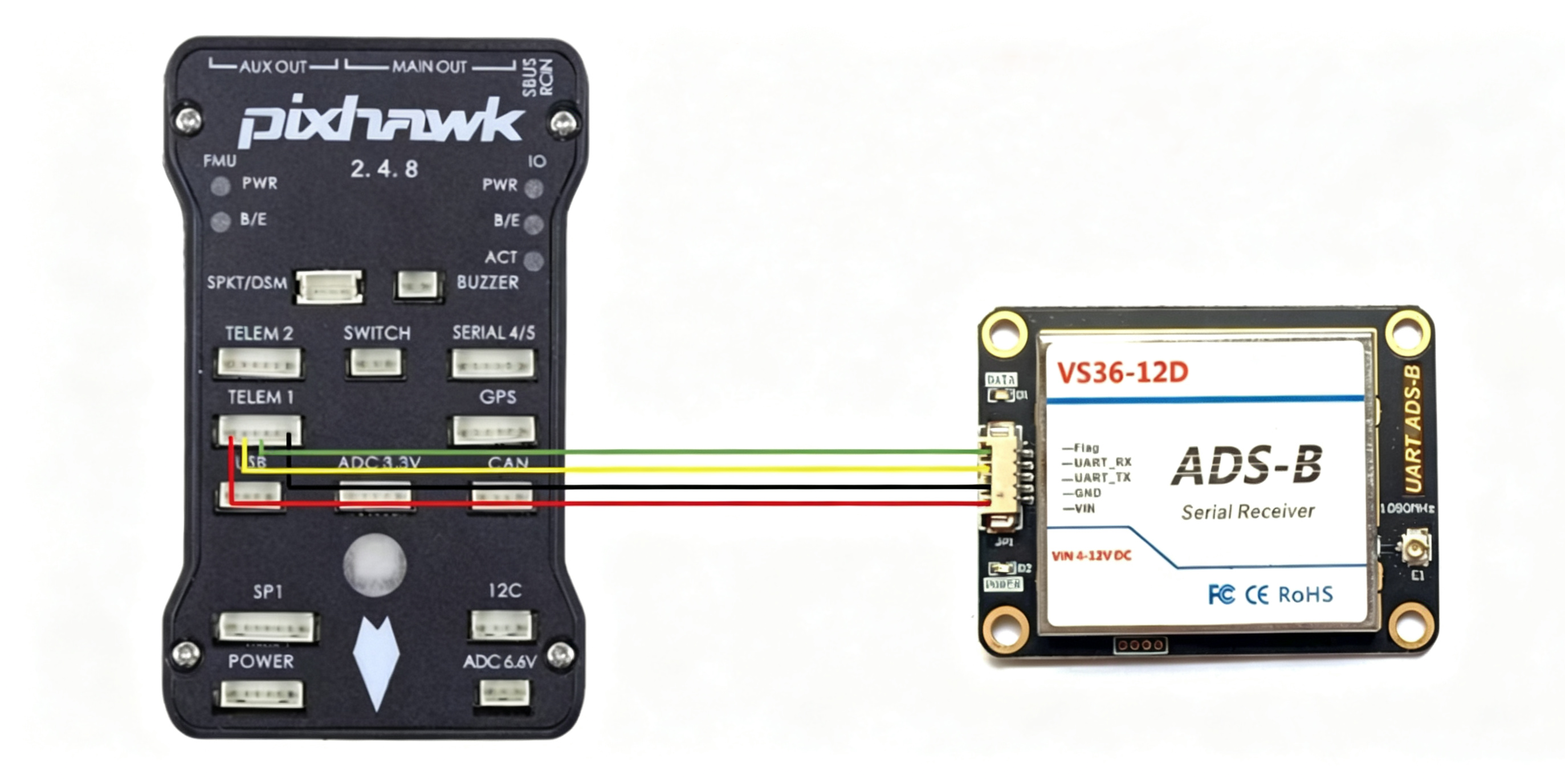

Taking Ardupilot/PX4 as an example, the ADS-B receiver module can usually be connected to the TELEM1 interface of the flight controller. Note that the interface order may differ across different flight controller hardware.
Technical Parameters
Product Includes

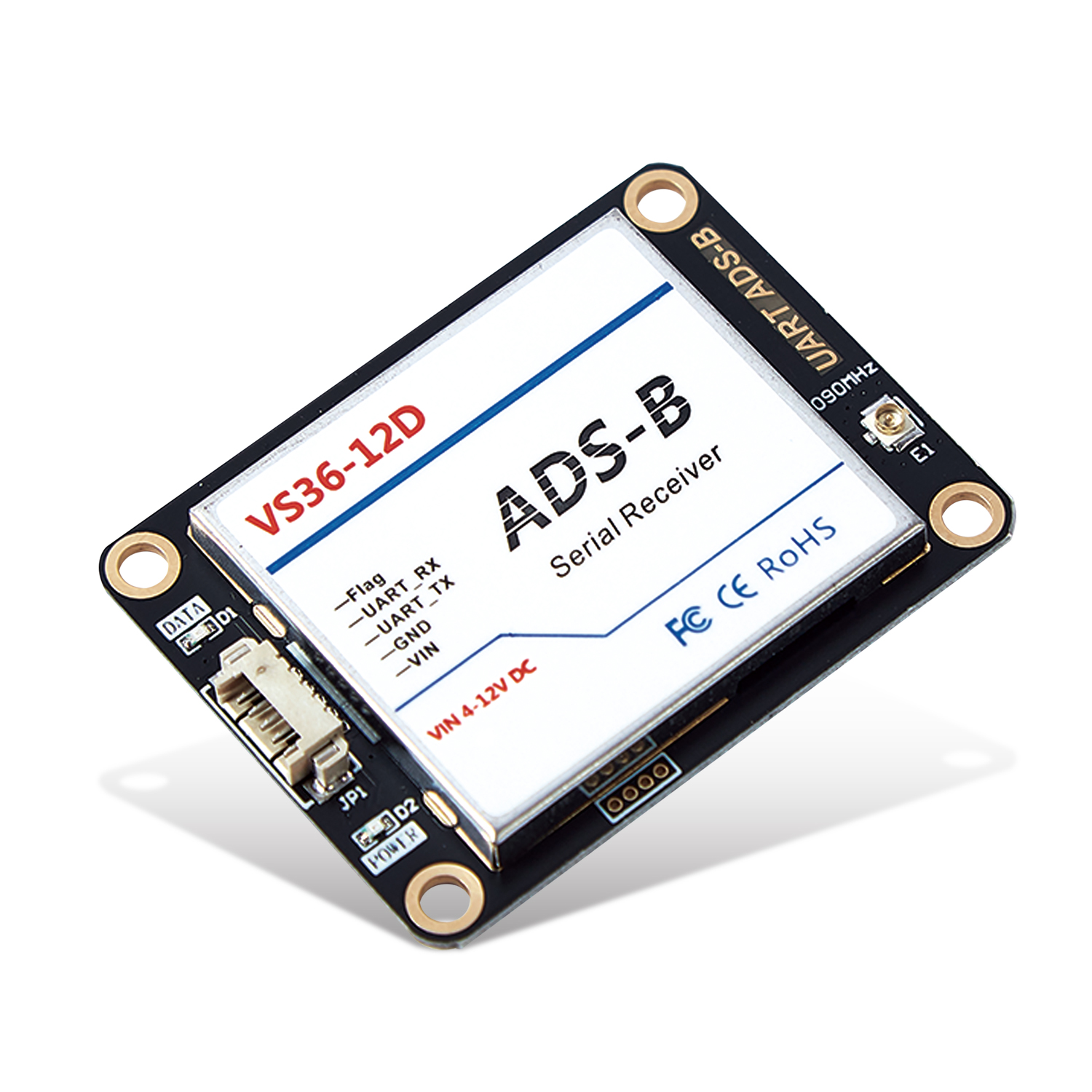

- VS36-12D ADS-B receiver module
- USB-to-TTL board with GH1.25-6P conneector and cable
- 1dBi IPEX antenna
Downloads
- VS36-12D ADS-B Receiving Module datesheet
