EXD11-TR is a highly integrated, compact ADS-B transceiver specifially used in the UAV field and small manned aircraft. It has the advantages of small size, light weight, high integration (integrated ADS-B out, ADS-B int, GNSS module, high-precision barometric pressure sensor, etc.), customizable transmitting power (20W, 100W, 150W) and low overall power consumption, especially suitable for UAVs, airships and other occasions with strict requirements for volume and weight.
EXD11-TR fully complies with the DO-260B standard, and is mainly used to enable ADS-B signal transmission for aircraft without ADS-B capability, airport surface vehicles, and ground obstacles. It has an ultra-wide power input range, meeting the power supply requirements of almost all types of UAVs on the market, without the need for additional power adapter circuitry. It integrates a J30J data interface and a standard GH1.25-4P communication interface, supports both RS422 and UART TTL protocols, and can be directly connected to various flight control computers, making it very convenient to use.
Features
- Compliant with DO-260B
- Transceiver, can independently enable receive or transmit
- Customizable transmission power of 43dBm、50dBm、52dBm (20W、100W、150W)
- ADS-B receiving sensitivity -90dBm, visible distance 200km
- Integrated GNSS module, supporting SBAS, with horizontal positioning accuracy better than 2.5 meters
- Integrated pressure sensor provides pressure altitude and climb rate
- Two data communication interfaces, RS422 and USART TTL,with baud rates of 9600-921600
- Signal type: 1090ES intermittent oscillation signal (DF17,DF18)
Application
- Drone ADS-B out
- Unmanned airships, floating platforms, sounding balloons,small navigable aircraft

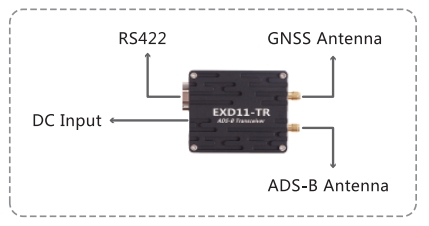

Hardware Connection

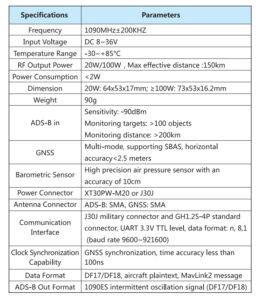

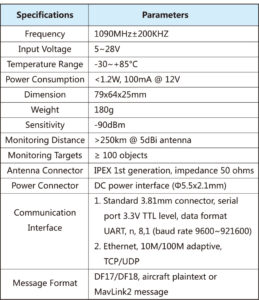

Technical Parameters
Product includes
- EXD11-TR device
- USB-to-TTL board with GH1.25-4P connector and cable
- 5Dbi ADS-B antenna with 1m cable
- GNSS antenna with 1m cable
Downloads
- EXD11-TR Transeiver Datasheet
- Software and Tools
