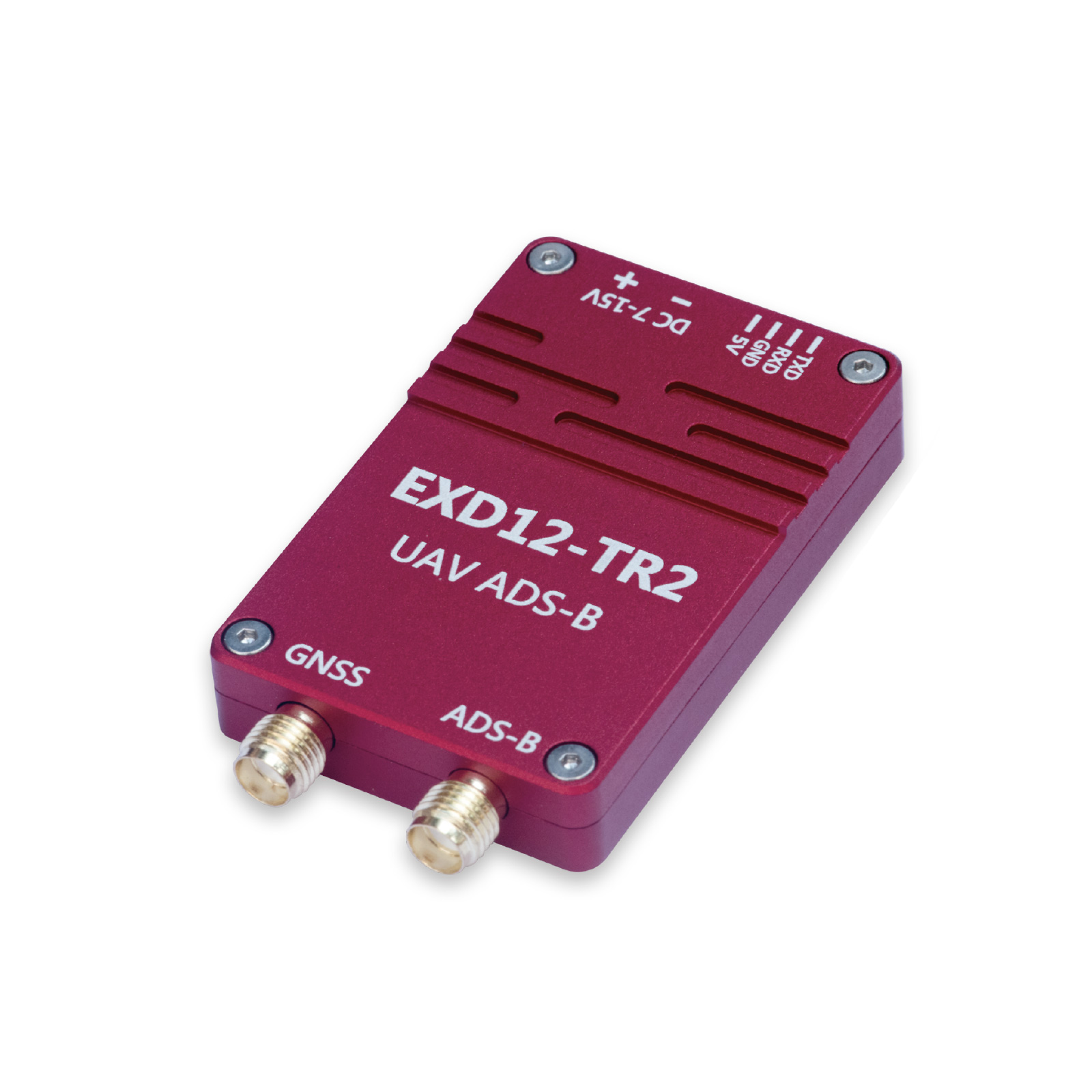

EXD12-TR2 is a highly integrated, low-power, compact ADS-B transceiver specifically used in the UAV field and small manned aircraft. It has the advantages of small size (52*35mm), light weight (about 35g), high intergration (intergrating ADS-B Out,  ADS-B In, GNSS positioning module, high-precision barometric pressure sensor, etc.), configurable transmit power (0.5W, 1W, 2W, 4W), and low overall power consumption. It is especially suitable for UAV-mounted, airship, and other applications where size and weight requirements are strict.
EXD12-TR2 fully complies with the DO-260B standard, and is mainly used to enable ADS-B signal transmission for aircraft without ADS-B capability, airport surface vehicles, and ground obstacles, etc. The transceiver integrates a standard GH1.25-4P communication interface and an XT30PW power interface, and uses the standard UART TTL communication protocol, can be directly convenient to use.
Features
- Transceiver, can independently enable receive or transmit
- The transmission power can be configured through the serial port (0.5W, 1W, 2W, 4W)
- Receiving sensitivity -90dBm, operating distance approximately 200km
- ICAO and flight number can be configured through serial port
- Signal type: 1090ES or UAT978 intermittent oscillation signal (DF17, DF18)
- Integrated GNSS module positioning accuracy: better than 2.5 meters
- Integrated pressure sensor provides pressure altitude
- Flight parameters such as latitude/longitude, altitude, heading, speed, climb rate, etc. can be sent to the transmitter via serial port
Application
- Drone ADS-B out
- Unmanned airships, floating platforms, and on-board ADS-B launches

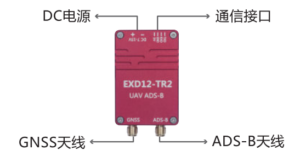

Hardware Connection

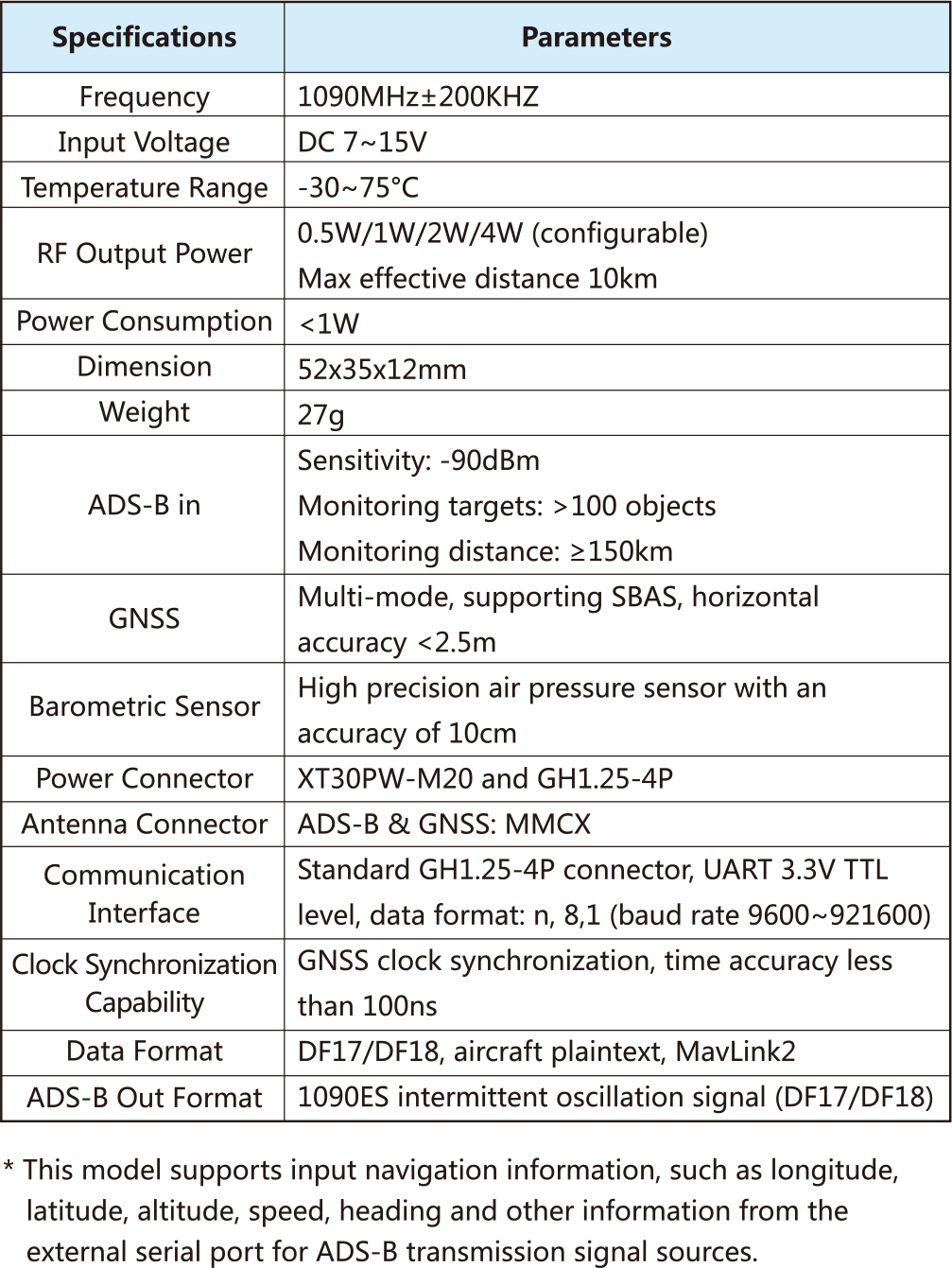

Technical Parameters
Product Includes
- EXD12-TR2 device
- USB-to-TTL board with GH1.25-4P connector and cable
- 5dBi ADS-B antenna with 1m cable
- GNSS antenna with 1m cable
Downloads
- EXD12-TR Transeiver Datasheet
- Software and Tools
