EXD26-30LT Small ADS-B Ground Station

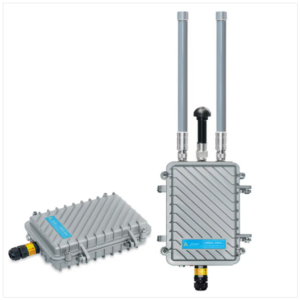

Summary

EXD26-20T is a small  ADS-B receiver with high stability, wide power input and high receiving sensitivity. The signal input of the receiver adopts a two-stage narrow-band filter and a one-stage low-noise amplifier, which can effectively filter out most of the out-of-band noise in the space channel to obtain a better signal-to-noise ratio, and the typical receiving sensitivity can reach -90dBm. The integrated high-dynamic signal processing circuit allows simultaneous reception of ADS-B broadcast information from short to long distance, with a typical monitoring distance of up to 250km.

The device supports Ethernet POE or external DC power supply, supports TCP/UDP protocol, and can be connected to the server to form a large-area airspace monitoring system. It can output the original ADS-B message (DF17/DF18) or aircraft plaintext information  through the UART port and LAN port at the same time.

Application

• ADS-B signal receiver
• Ground equipment, virtual radar
• UAS ground stations and high-density traffic surveillance
• Traffic-flow analysis and statistics

Hardware Connection

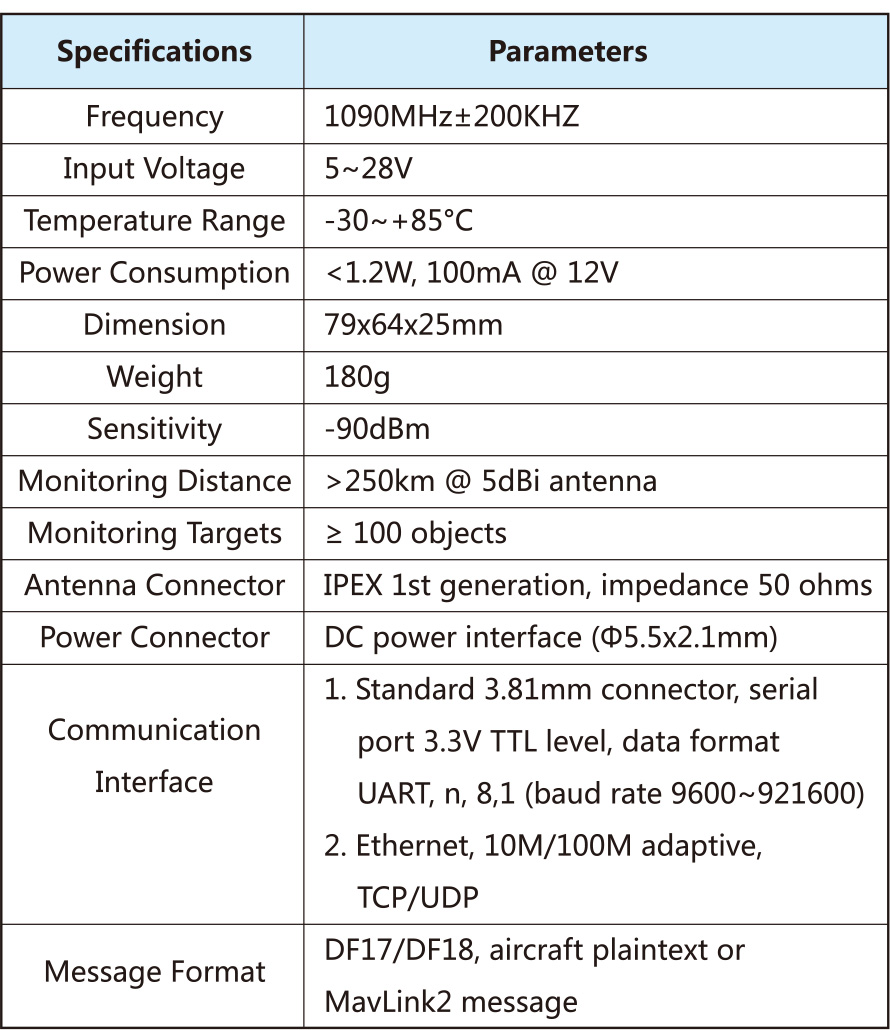

Technical Parameters

Product includes

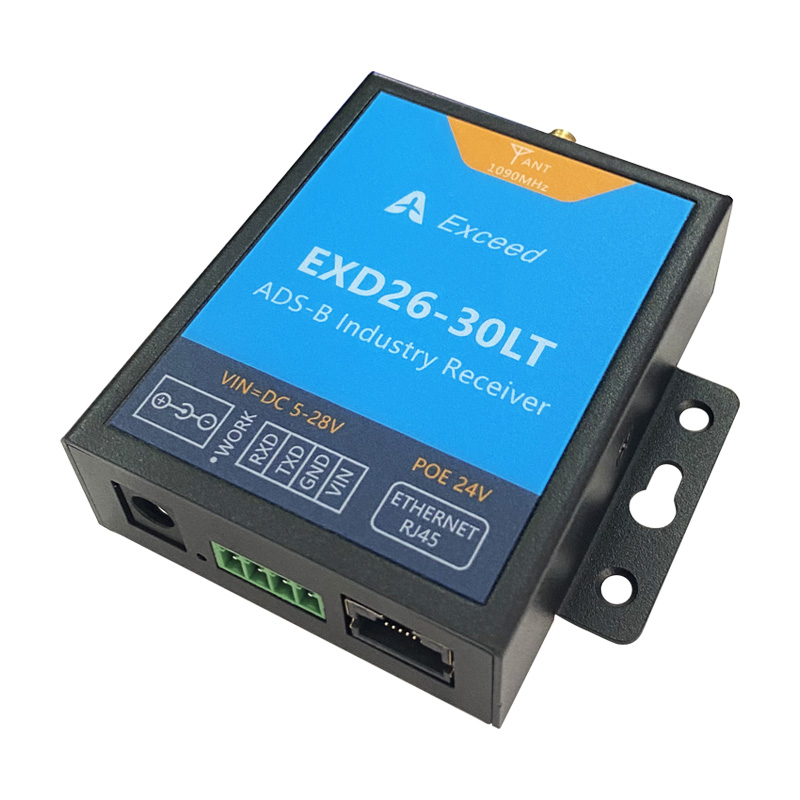

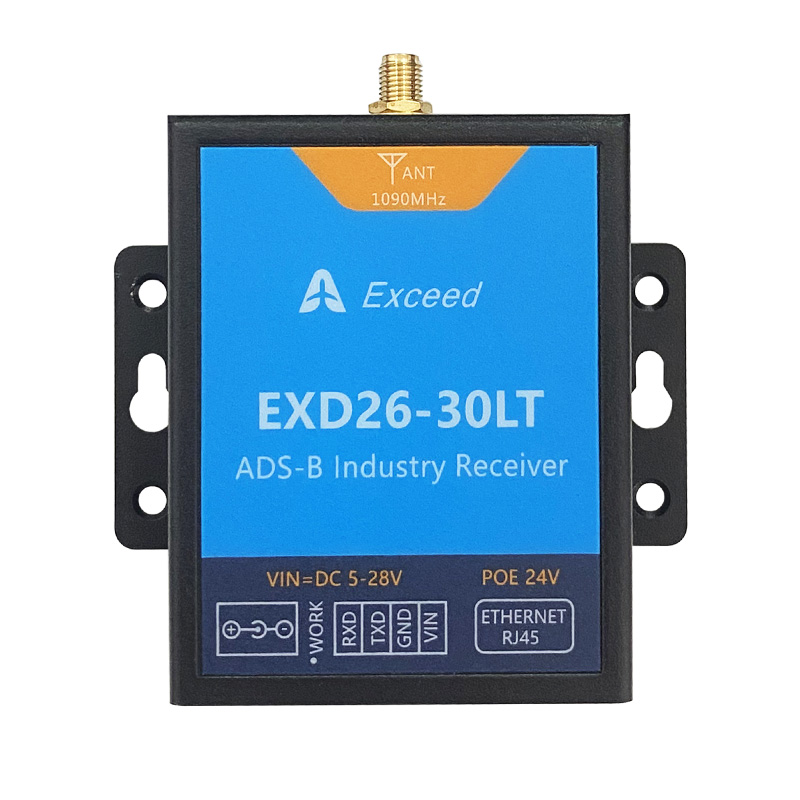

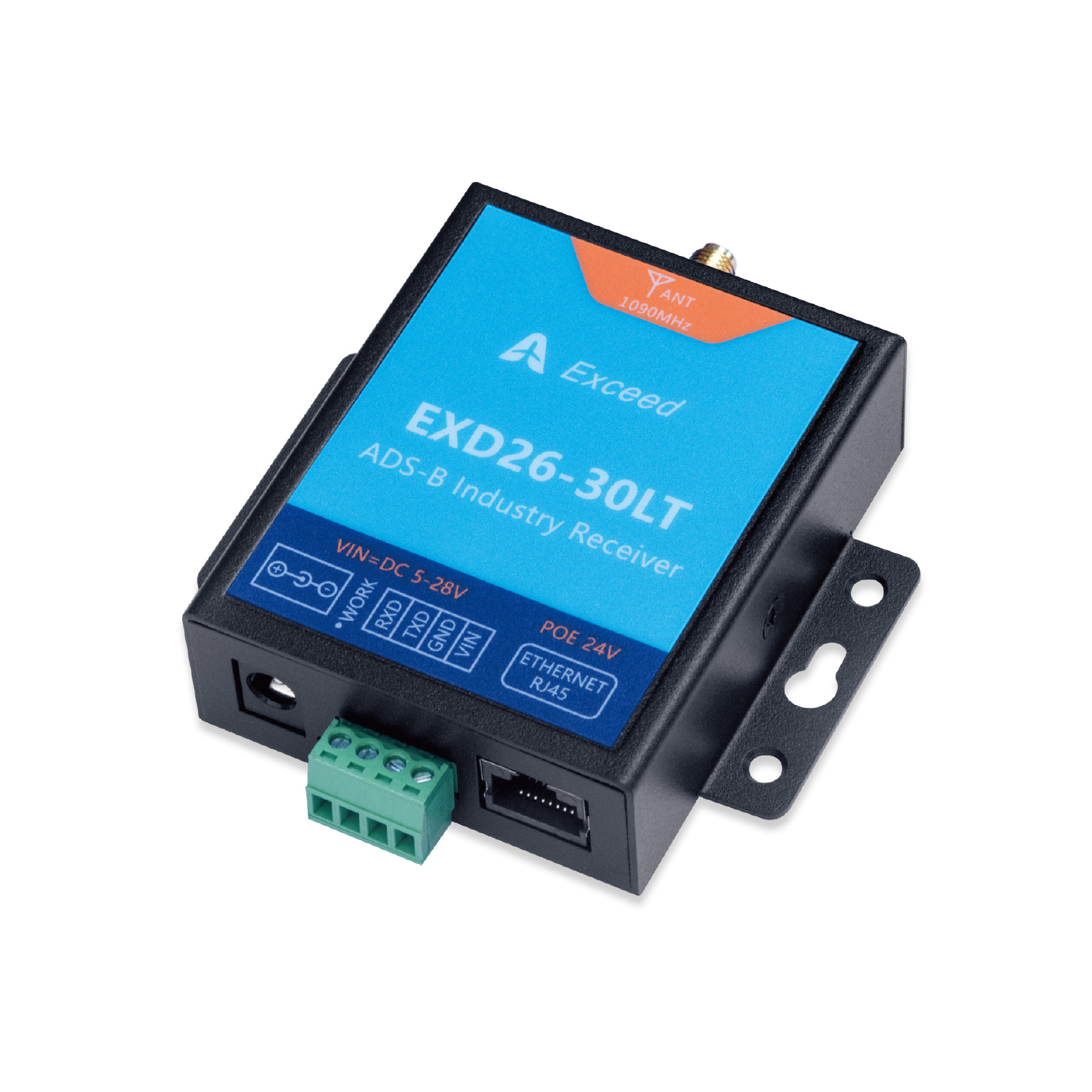

• EXD26-30LT Receiver
• POE power adapter (input:AC 100-240V, output DC 24V 1A)
• USB-to-TTL board
• 4-PIN connection cable
• LAN cable (length 1.5m)
