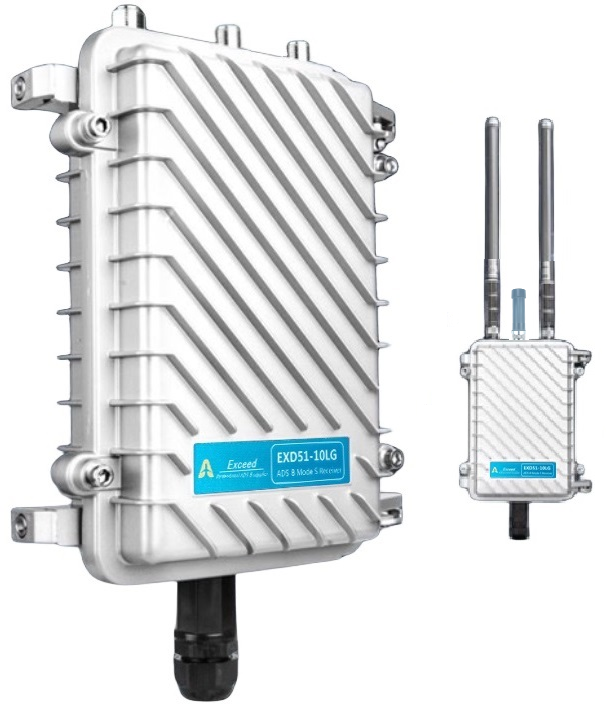

EXD51-10LG is an industrial-grade PoE-powered ADS-B ground station receiver. It supports dual-band reception and decoding of 1090ES and UAT978, works with various surveillance software, and suits air traffic control surveillance, surface surveillance, radar calibration, and MLAT.
It uses an Ethernet interface, supports TCP/UDP, has a built-in multi-mode GNSS module, and outputs ADS-B data with high-precision timestamps. Optimized RF filtering and high-dynamic signal processing suppress out-of-band noise and improve SNR. Receiving sensitivity is -105dBm, maximum surveillance range is 350km, and it handles ADS-B signals at different distance simultaneously. It also supports standalone deployment and dual-redundancy architecture. The dual-redundancy configuration includes two independent receiving channels an antennas, avoiding signal obstruction and external interference, expanding surveillance coverage, and improving system reliability.
Product features
- Maximum receiving sensitivity -110dBm, monitoring distance>350km
- Can output various data formats such as DF17/DF18, aircraft plaintext data, CAT021, etc
- Supports TCP/UDP protocols, supports PoE power supply

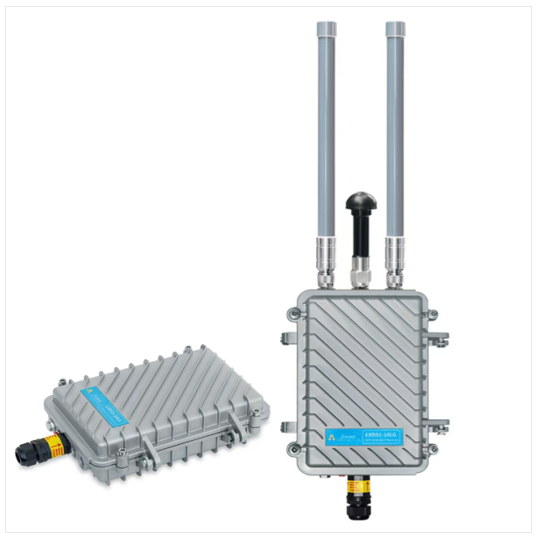

- Metal waterproof and dustproof enclosure, dual-redundant design, high stability
- Integrates GNSS, supports Multilateration (MLAT)
Application area
- ADS-B signal receiver
- Ground equipment, virtual radar, Multilateration (MLAT)
- Airspace monitoring

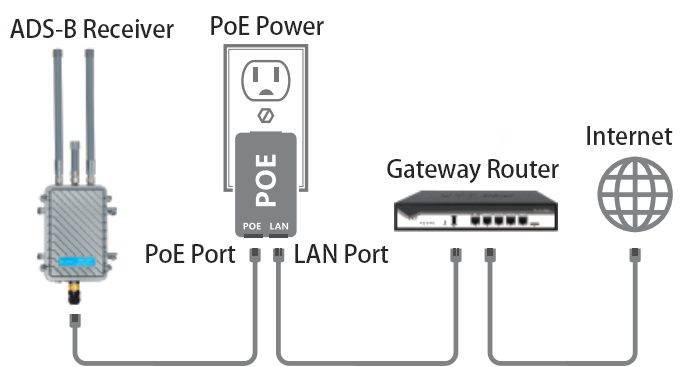

Hardware Connection
